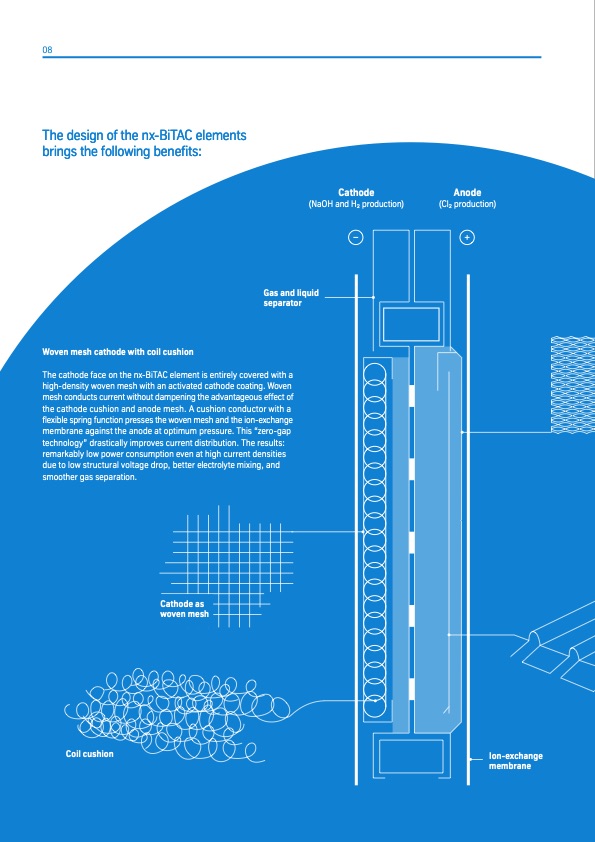

08 The design of the nx-BiTAC elements brings the following benefits: Cathode (NaOH and H2 production) Gas and liquid separator Anode (Cl2 production) Woven mesh cathode with coil cushion The cathode face on the nx-BiTAC element is entirely covered with a high-density woven mesh with an activated cathode coating. Woven mesh conducts current without dampening the advantageous effect of the cathode cushion and anode mesh. A cushion conductor with a flexible spring function presses the woven mesh and the ion-exchange membrane against the anode at optimum pressure. This “zero-gap technology” drastically improves current distribution. The results: remarkably low power consumption even at high current densities due to low structural voltage drop, better electrolyte mixing, and smoother gas separation. Cathode as woven mesh Coil cushion Ion-exchange membranePDF Image | Chlor-Alkali Electrolysis
