Text from PDF Page: 009

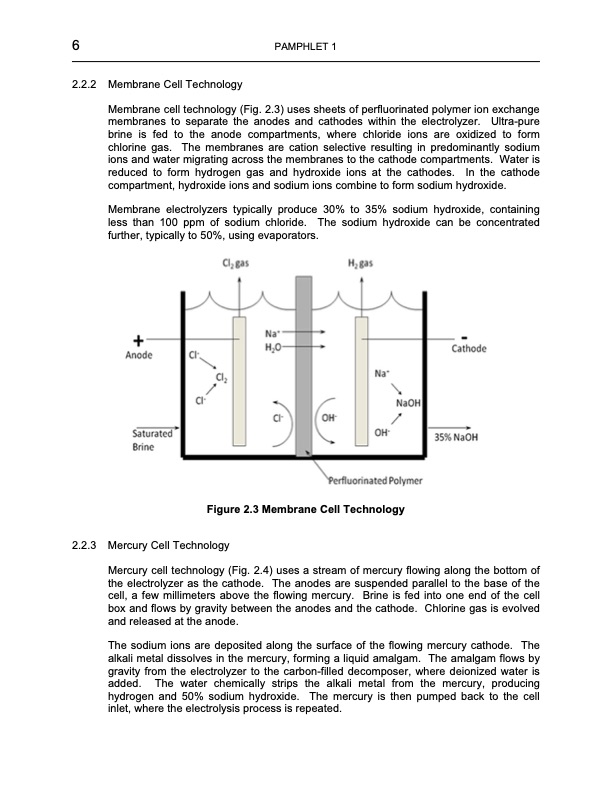

6 2.2.2 PAMPHLET 1 2.2.3 Membrane cell technology (Fig. 2.3) uses sheets of perfluorinated polymer ion exchange membranes to separate the anodes and cathodes within the electrolyzer. Ultra-pure brine is fed to the anode compartments, where chloride ions are oxidized to form chlorine gas. The membranes are cation selective resulting in predominantly sodium ions and water migrating across the membranes to the cathode compartments. Water is reduced to form hydrogen gas and hydroxide ions at the cathodes. In the cathode compartment, hydroxide ions and sodium ions combine to form sodium hydroxide. Membrane electrolyzers typically produce 30% to 35% sodium hydroxide, containing less than 100 ppm of sodium chloride. The sodium hydroxide can be concentrated further, typically to 50%, using evaporators. Figure 2.3 Membrane Cell Technology Mercury Cell Technology Mercury cell technology (Fig. 2.4) uses a stream of mercury flowing along the bottom of the electrolyzer as the cathode. The anodes are suspended parallel to the base of the cell, a few millimeters above the flowing mercury. Brine is fed into one end of the cell box and flows by gravity between the anodes and the cathode. Chlorine gas is evolved and released at the anode. The sodium ions are deposited along the surface of the flowing mercury cathode. The alkali metal dissolves in the mercury, forming a liquid amalgam. The amalgam flows by gravity from the electrolyzer to the carbon-filled decomposer, where deionized water is added. The water chemically strips the alkali metal from the mercury, producing hydrogen and 50% sodium hydroxide. The mercury is then pumped back to the cell inlet, where the electrolysis process is repeated. Membrane Cell TechnologyPDF Image | Chlorine Basics 8
