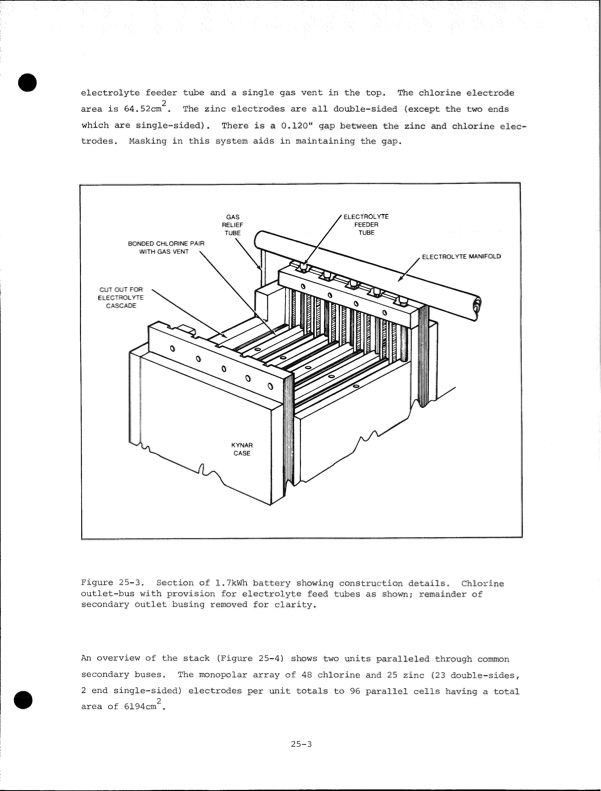

electrolyte feeder tube and a single gas vent in the top. The chlorine electrode 2 area is 64.52cm . The zinc electrodes are all double-sided (except the two ends which are single-sided). There is a 0.120" gap between the zinc and chlorine elec trodes. Masking in this system aids in maintaining the gap. BONDED CHLORINE PAIR WITH GAS VENT v CUT OUT FOR ELECTROLYTE CASCADE ELECTROLYTE MANIFOLD GAS RELIEF TUBE ELECTROLYTE FEEDER TUBE KYNAR CASE Figure 25-3. Section of 1.7kWh battery showing construction details. Chlorine outlet-bus with provision for electrolyte feed tubes as shown; remainder of secondary outlet busing removed for clarity. An overview of the stack (Figure 25-4) shows two units paralleled through common secondary buses. The monopolar array of 48 chlorine and 25 zinc (23 double-sides, 2 end single-sided) electrodes per unit totals to 96 parallel cells having a total 2 area of 6194cm . 25-3PDF Image | Development of the Zinc-Chlorine Battery for Utility
