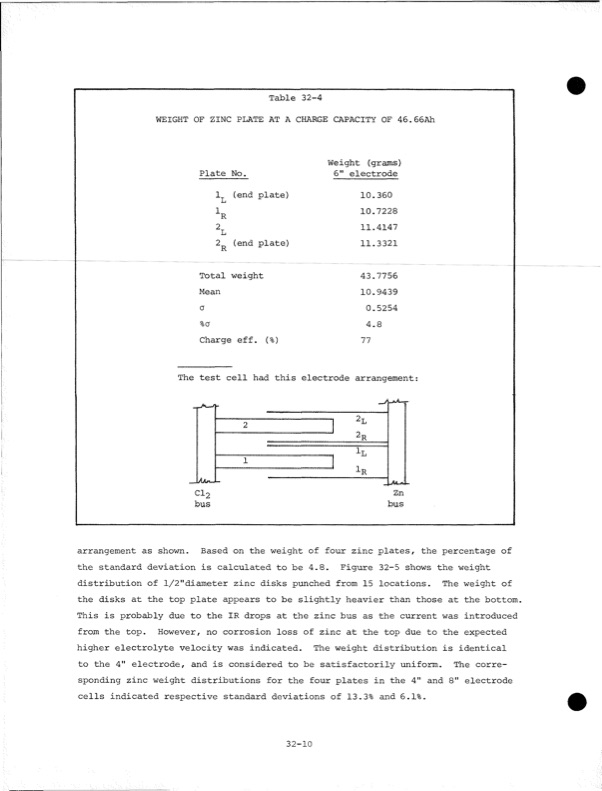

Table 32-4 WEIGHT OF ZINC PLATE AT A CHARGE CAPACITY OF 46.66Ah Plate No. Weight (grains) 6" electrode 10.360 10.7228 11.4147 11.3321 43.7756 10.9439 0.5254 4.8 77 XL 2l 2r (end plate) (end plate) Total weight Mean 0 %cr Charge eff. (%) The test cell had this electrode arrangement: arrangement as shown. Based on the weight of four zinc plates, the percentage of the standard deviation is calculated to be 4.8. Figure 32-5 shows the weight distribution of 1/2"diameter zinc disks punched from 15 locations. The weight of the disks at the top plate appears to be slightly heavier than those at the bottom This is probably due to the IR drops at the zinc bus as the current was introduced from the top. However, no corrosion loss of zinc at the top due to the expected higher electrolyte velocity was indicated. The weight distribution is identical to the 4" electrode, and is considered to be satisfactorily uniform. The corre sponding zinc weight distributions for the four plates in the 4" and 8" electrode cells indicated respective standard deviations of 13.3% and 6.1%. 32-10PDF Image | Development of the Zinc-Chlorine Battery for Utility
