Development of the Zinc-Chlorine Battery for Utility

PDF Publication Title:

Development of the Zinc-Chlorine Battery for Utility ( development-zinc-chlorine-battery-utility )

Previous Page View | Next Page View | Return to Search List

Text from PDF Page: 169

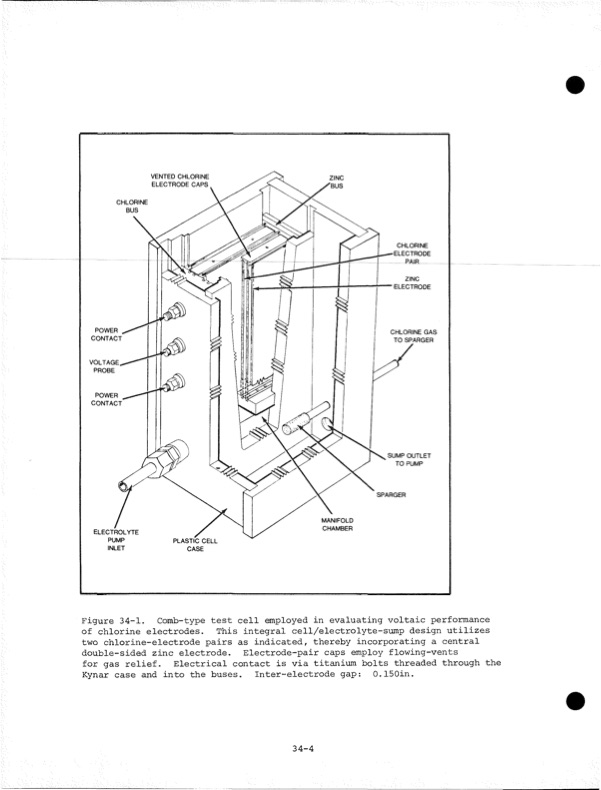

CHLORINE BUS POWER . CONTACT VOLTAGE, PROBE POWER contact' CHLORINE ELECTRODE . PAIR ZINC ELECTRODE CHLORINE GAS TO SPARGER SUMP OUTLET TO PUMP SPARGER VENTED CHLORINE ELECTRODE CAPS ZINC 'BUS ELECTROLYTE PUMP INLET Figure 34-1. of chlorine electrodes. This integral cell/electrolyte-sump design utilizes two chlorine-electrode pairs as indicated, thereby incorporating a central double-sided zinc electrode. Electrode-pair caps employ flowing-vents for gas relief. Electrical contact is via titanium bolts threaded through the Kynar case and into the buses. Inter-electrode gap: O.lSOin. PLASTIC CELL CASE MANIFOLD CHAMBER Comb-type test cell employed in evaluating voltaic performance 34-4
