Text from PDF Page: 175

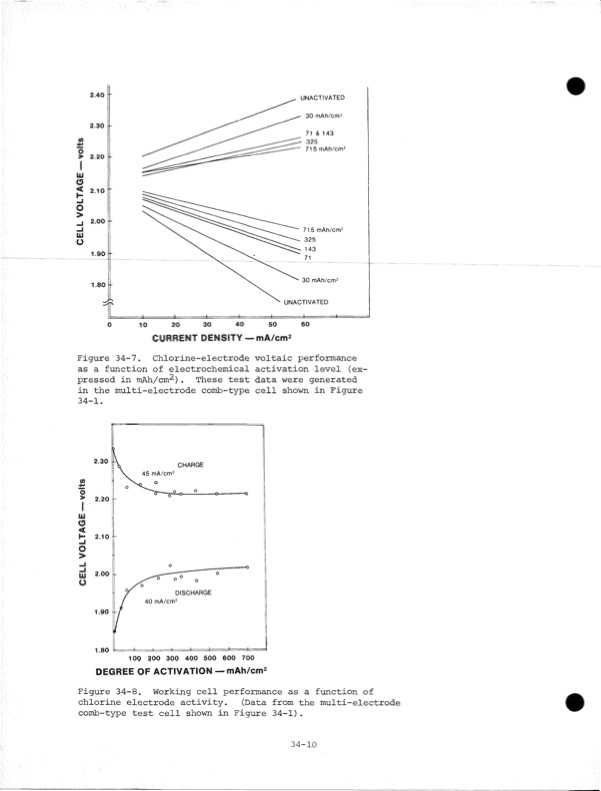

2.30 - 2.20 2.10 UNACTIVATED 71 & 143 325 715 mAh/cm2 715 mAh/cm2 325 143 UNACTIVATED CURRENT DENSITY —mA/cm2 Figure 34-7. Chlorine-electrode voltaic performance as a function of electrochemical activation level (ex pressed in inAh/cm^). These test data were generated in the multi-electrode comb-type cell shown in Figure 34-1. 2.30 2.20 K- 2.10 2.00 CHARGE DISCHARGE 100 200 300 400 500 600 700 DEGREE OF ACTIVATION — mAh/cm2 Figure 34-8. Working cell performance as a function of chlorine electrode activity. (Data from the multi-electrode comb-type test cell shown in Figure 34-1). 34-10
