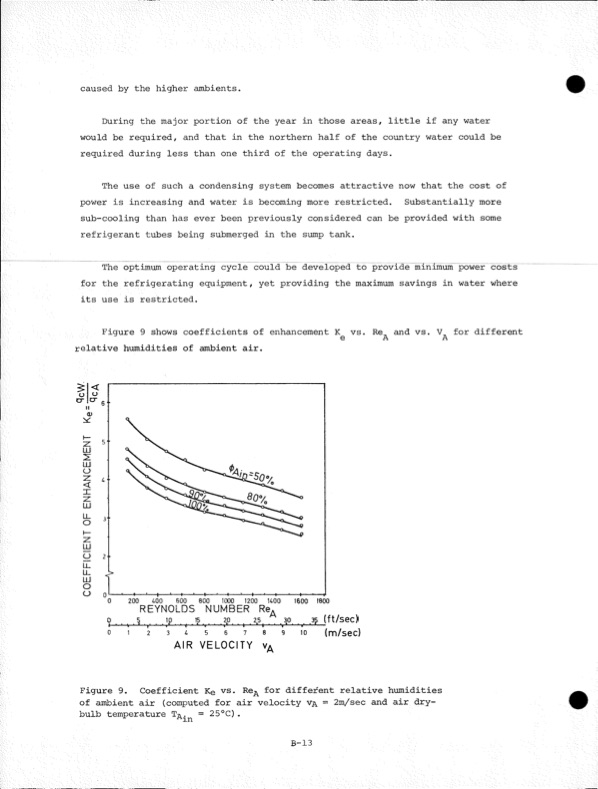

caused by the higher ambients. During the major portion of the year in those areas, little if any water would be required, and that in the northern half of the country water could be required during less than one third of the operating days. The use of such a condensing system becomes attractive now that the cost of power is increasing and water is becoming more restricted. Substantially more sub-cooling than has ever been previously considered can be provided with some refrigerant tubes being submerged in the sump tank. The optimum operating cycle could be developed to provide minimum power costs for the refrigerating equipment, yet providing the maximum savings in water where its use is restricted. Figure 9 shows coefficients of enhancement K vs. Re and vs. V for different eAA relative humidities of ambient air. 200 400 600 800 1000 1200 1400 REYNOLDS NUMBER Re. 1600 1800 3£ (ft/sec) "■ 1 * * ^ 1 V 11 ■■ V" ■■■■' 9 ■ ■ .... AIR VELOCITY vA Figure 9. Coefficient Ke vs. ReA for different relative humidities of ambient air (computed for air velocity = 2m/sec and air dry- bulb temperature TA^n = 25°C). *1 0 1 2 3 4 5 6 7 8 9 10 (m/sec) B-13PDF Image | Development of the Zinc-Chlorine Battery for Utility
