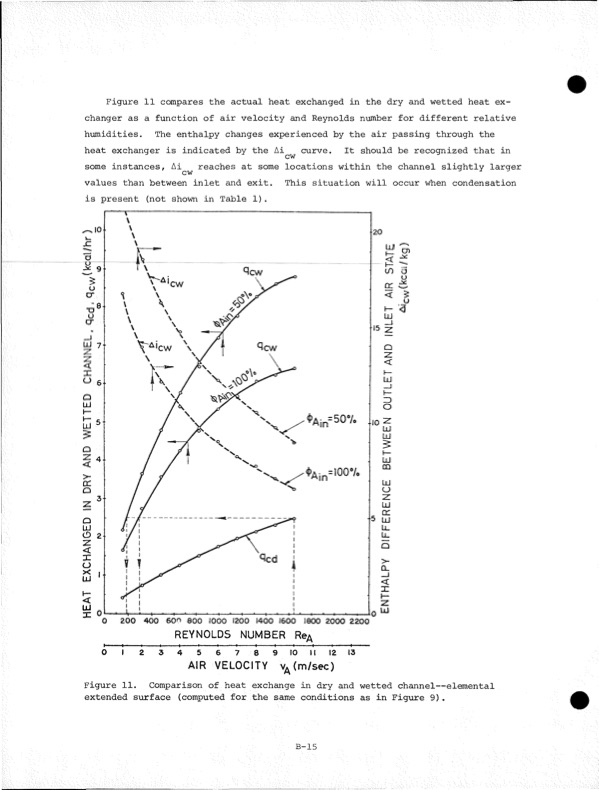

Figure 11 compares the actual heat exchanged in the dry and wetted heat ex changer as a function of air velocity and Reynolds number for different relative humidities. The enthalpy changes experienced by the air passing through the cw curve. It should be recognized that in heat exchanger is indicated by the Ai some instances, Ai^ reaches at some locations within the channel slightly larger values than between inlet and exit. This situation will occur when condensation is present (not shown in Table 1). 0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 REYNOLDS NUMBER ReA 0 I 2 3 4 5 6 7 8 9 10 II 12 13 AIR VELOCITY vA(m/sec) Figure 11. Comparison of heat exchange in dry and wetted channel—elemental extended surface (computed for the same conditions as in Figure 9). B-15 HEAT EXCHANGED IN DRY AND WETTED CHANNEL, qcd ,PDF Image | Development of the Zinc-Chlorine Battery for Utility
