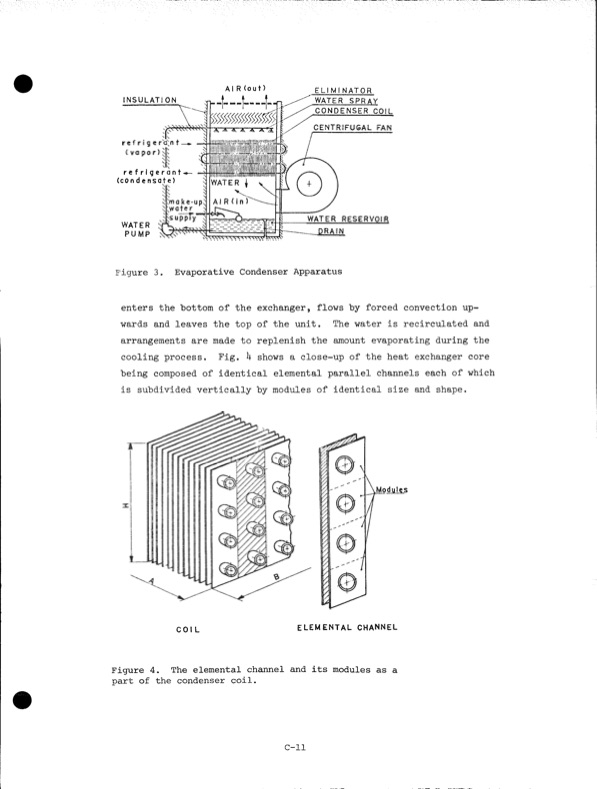

Al R (out) ELIMINATOR WATER SPRAY CONDENSER COIL INSULATION refrigerant (condensate) WATER PUMP Figure 3. Evaporative Condenser Apparatus enters the bottom of the exchanger, flows by forced convection up wards and leaves the top of the unit. The water is recirculated and arrangements are made to replenish the amount evaporating during the cooling process. Fig. 4 shows a close-up of the heat exchanger core being composed of identical elemental parallel channels each of which is subdivided vertically by modules of identical size and shape. COIL ELEMENTAL CHANNEL Figure 4. The elemental channel and its modules as a part of the condenser coil. C-ll ModulesPDF Image | Development of the Zinc-Chlorine Battery for Utility
