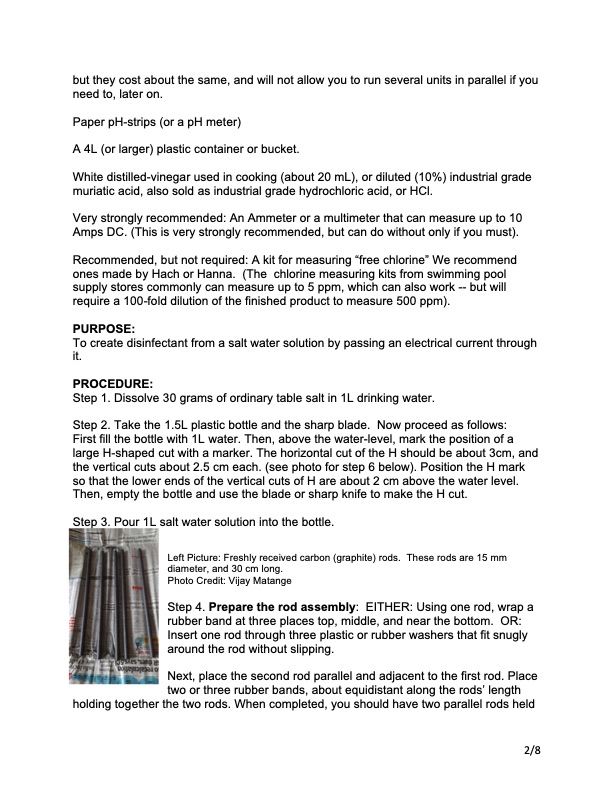

but they cost about the same, and will not allow you to run several units in parallel if you need to, later on. Paper pH-strips (or a pH meter) A 4L (or larger) plastic container or bucket. White distilled-vinegar used in cooking (about 20 mL), or diluted (10%) industrial grade muriatic acid, also sold as industrial grade hydrochloric acid, or HCl. Very strongly recommended: An Ammeter or a multimeter that can measure up to 10 Amps DC. (This is very strongly recommended, but can do without only if you must). Recommended, but not required: A kit for measuring “free chlorine” We recommend ones made by Hach or Hanna. (The chlorine measuring kits from swimming pool supply stores commonly can measure up to 5 ppm, which can also work -- but will require a 100-fold dilution of the finished product to measure 500 ppm). PURPOSE: To create disinfectant from a salt water solution by passing an electrical current through it. PROCEDURE: Step 1. Dissolve 30 grams of ordinary table salt in 1L drinking water. Step 2. Take the 1.5L plastic bottle and the sharp blade. Now proceed as follows: First fill the bottle with 1L water. Then, above the water-level, mark the position of a large H-shaped cut with a marker. The horizontal cut of the H should be about 3cm, and the vertical cuts about 2.5 cm each. (see photo for step 6 below). Position the H mark so that the lower ends of the vertical cuts of H are about 2 cm above the water level. Then, empty the bottle and use the blade or sharp knife to make the H cut. Step 3. Pour 1L salt water solution into the bottle. Left Picture: Freshly received carbon (graphite) rods. These rods are 15 mm diameter, and 30 cm long. Photo Credit: Vijay Matange Step 4. Prepare the rod assembly: EITHER: Using one rod, wrap a rubber band at three places top, middle, and near the bottom. OR: Insert one rod through three plastic or rubber washers that fit snugly around the rod without slipping. Next, place the second rod parallel and adjacent to the first rod. Place two or three rubber bands, about equidistant along the rods’ length holding together the two rods. When completed, you should have two parallel rods held 2/8PDF Image | Electro-Clean Disinfectant Instructions
