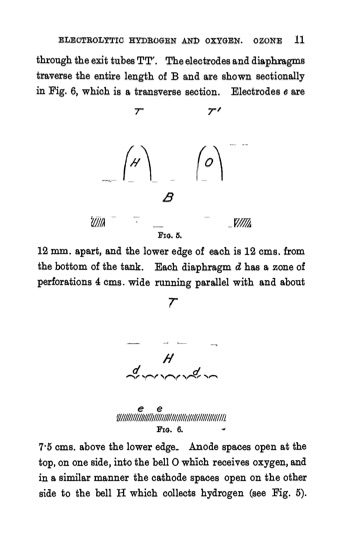

ELECTEOLYTIC HYDEOGEN AND OXYGEN. OZONE 11 through the exit tubes TT'. The electrodes and diaphragms traverse the entire length of B and are shown sectionally in Fig. 6, which is a transverse section. Electrodes e are T T' T B _ " _vm FIG. 5. 12 mm. apart, and the lower edge of each is 12 cms. from the bottom of the tank. Each diaphragm d has a zone of perforations 4 cms. wide running parallel with and about r H FIG. 6. * 7'5 cms. above the lower edge. Anode spaces open at the top, on one side, into the bell 0 which receives oxygen, and in a similar manner the cathode spaces open on the other side to the bell H which collects hydrogen (see 3?ig. 5).PDF Image | MANUFACTURE OF CHEMICALS BY ELECTROLYSIS
