Text from PDF Page: 008

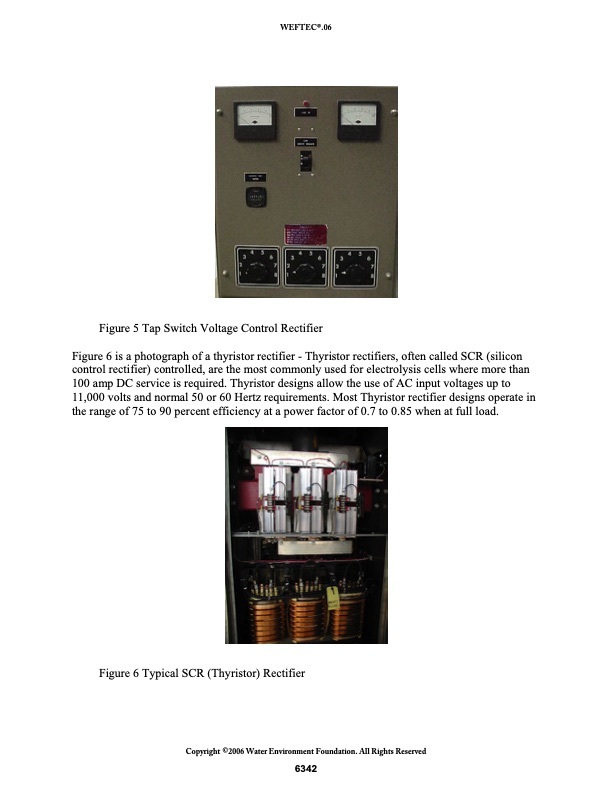

WEFTEC®.06 Figure 5 Tap Switch Voltage Control Rectifier Figure 6 is a photograph of a thyristor rectifier - Thyristor rectifiers, often called SCR (silicon control rectifier) controlled, are the most commonly used for electrolysis cells where more than 100 amp DC service is required. Thyristor designs allow the use of AC input voltages up to 11,000 volts and normal 50 or 60 Hertz requirements. Most Thyristor rectifier designs operate in the range of 75 to 90 percent efficiency at a power factor of 0.7 to 0.85 when at full load. Figure 6 Typical SCR (Thyristor) Rectifier Copyright ©2006 Water Environment Foundation. All Rights Reserved 6342PDF Image | On-Site Sodium Hypochlorite Generation
