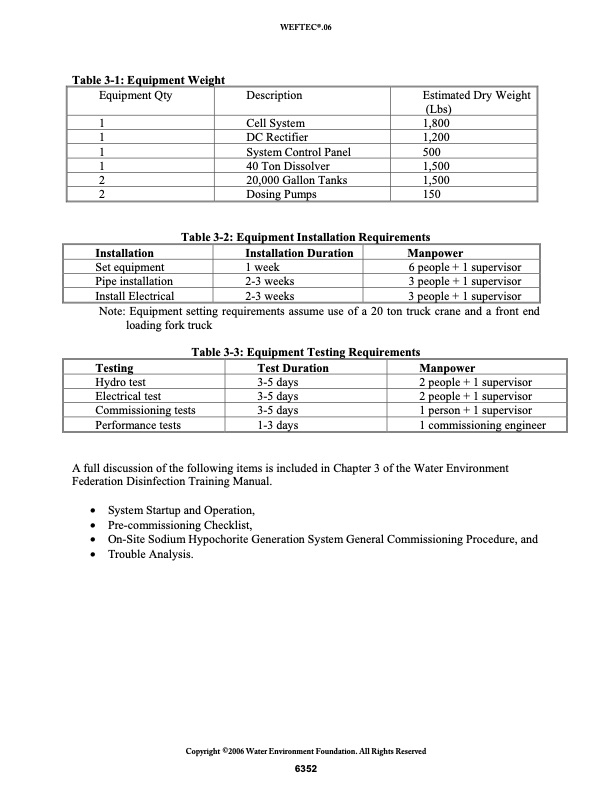

Text from PDF Page: 018
Table 3-1: Equipment Weight EquipmentQty 1 1 1 1 2 2 Installation Set equipment Pipe installation Install Electrical Description Cell System DC Rectifier System Control Panel 40 Ton Dissolver 20,000 Gallon Tanks Dosing Pumps EstimatedDryWeight (Lbs) 1,800 1,200 500 1,500 1,500 150 WEFTEC®.06 Table 3-2: Equipment Installation Requirements Installation Duration 1 week 2-3 weeks 2-3 weeks Manpower 6 people + 1 supervisor 3 people + 1 supervisor 3 people + 1 supervisor Note: Equipment setting requirements assume use of a 20 ton truck crane and a front end loading fork truck Table 3-3: Equipment Testing Requirements Testing Hydro test Electrical test Commissioning tests Performance tests Test Duration 3-5 days 3-5 days 3-5 days 1-3 days Manpower 2 people + 1 supervisor 2 people + 1 supervisor 1 person + 1 supervisor 1 commissioning engineer A full discussion of the following items is included in Chapter 3 of the Water Environment Federation Disinfection Training Manual. • System Startup and Operation, • Pre-commissioning Checklist, • On-Site Sodium Hypochorite Generation System General Commissioning Procedure, and • Trouble Analysis. Copyright ©2006 Water Environment Foundation. All Rights Reserved 6352PDF Image | On-Site Sodium Hypochlorite Generation
