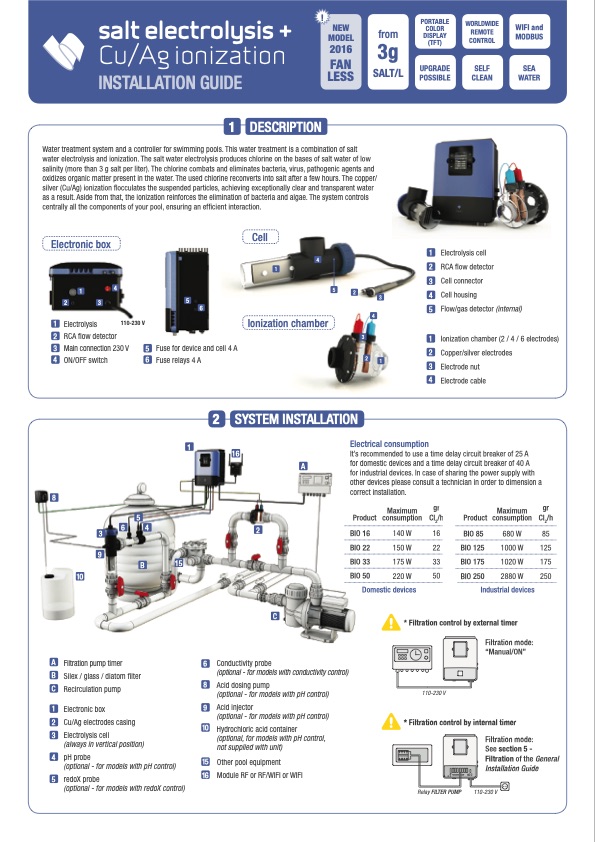

salt electrolysis + ! FAN LESS PORTABLE COLOR DISPLAY (TFT) UPGRADE POSSIBLE WORLDWIDE REMOTE CONTROL SELF CLEAN WIFI and MODBUS SEA WATER Cu/Ag ionization NEW MODEL 2016 from 3g SALT/L INSTALLATION GUIDE 1 DESCRIPTION Water treatment system and a controller for swimming pools. This water treatment is a combination of salt water electrolysis and ionization. The salt water electrolysis produces chlorine on the bases of salt water of low salinity (more than 3 g salt per liter). The chlorine combats and eliminates bacteria, virus, pathogenic agents and oxidizes organic matter present in the water. The used chlorine reconverts into salt after a few hours. The copper/ silver (Cu/Ag) ionization flocculates the suspended particles, achieving exceptionally clear and transparent water as a result. Aside from that, the ionization reinforces the elimination of bacteria and algae. The system controls centrally all the components of your pool, ensuring an efficient interaction. Cell 1 14 523 1 Electrolysis cell 2 RCA flow detector 3 Cell connector 4 Cell housing 5 Flow/gas detector (internal) 1 Ionization chamber (2 / 4 / 6 electrodes) 2 Copper/silver electrodes 3 Electrode nut 4 Electrode cable Electronic box 4 2356 1 Electrolysis 2 RCA flow detector 3 Main connection 230 V 4 ON/OFF switch 4 110-230 V 5 6 Fuse for device and cell 4 A Ionization chamber 3 Fuse relays 4 A 2 2 SYSTEM INSTALLATION 1 5 364 2 Maximum gr Product consumption Cl2/h Maximum gr Product consumption Cl2/h 1 16 Electrical consumption It’s recommended to use a time delay circuit breaker of 25 A for domestic devices and a time delay circuit breaker of 40 A for industrial devices. In case of sharing the power supply with other devices please consult a technician in order to dimension a correct installation. 8 A 9 B 15 BIO 16 BIO 22 BIO 33 BIO 50 140 W 150 W 175 W 220 W 16 22 33 50 BIO 85 BIO 125 BIO 175 BIO 250 680 W 85 1000 W 125 1020 W 175 2880 W 250 10 A Filtration pump timer B Silex / glass / diatom filter C Recirculation pump 1 Electronic box 2 Cu/Ag electrodes casing 3 Electrolysis cell (always in vertical position) 6 Conductivity probe (optional - for models with conductivity control) 8 Acid dosing pump (optional - for models with pH control) 9 Acid injector (optional - for models with pH control) 10 Hydrochloric acid container (optional, for models with pH control, not supplied with unit) 15 Other pool equipment 16 Module RF or RF/WIFI or WIFI Filtration mode: See section 5 - Filtration of the General Installation Guide Domestic devices Industrial devices C * Filtration control by external timer Filtration mode: “Manual/ON” 110-230 V * Filtration control by internal timer 4 pH probe (optional - for models with pH control) 5 redoX probe (optional - for models with redoX control) Relay FILTER PUMP 110-230 VPDF Image | SEA WATER Cu Ag ionization
