Text from PDF Page: 075

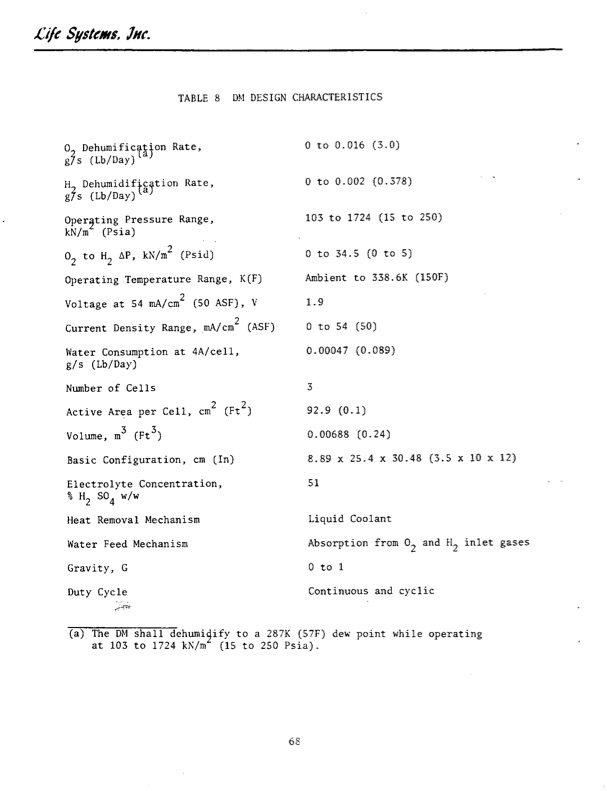

£ife SYstcms, Jnc. 0 Dehumification Rate, gs (Lb/Day) a) H2 Dehumidifia tion Rate, a g/s (Lb/Day) Operating Pressure Range, kN/m (Psia) 02 to H2 AP, kN/m2 (Psid) Operating Temperature Range, K(F) Voltage at 54 mA/cm2 (50 ASF), V Current Density Range, mA/cm2 (ASF) Water Consumption at 4A/cell, g/s (Lb/Day) Number of Cells Active Area per Cell, cm2 (Ft2 ) Volume, m3 (Ft3 ) Basic Configuration, cm (In) Electrolyte Concentration, % H2 SO4 w/w Heat Removal Mechanism Water Feed Mechanism Gravity, G Duty Cycle 0 to 0.016 (3.0) 0 to 0.002 (0.378) 103 to 1724 (15 to 250) 0 to 34.5 (0 to 5) Ambient to 338.6K (150F) 1.9 0 to 54 (50) 0.00047 (0.089) 3 92.9 (0.1) 0.00688 (0.24) 8.89 x 25.4 x 30.48 (3.5 x 10 x 12) 51 Liquid Coolant Absorption from 02 and H2 inlet gases 0 to 1 Continuous and cyclic TABLE 8 DM DESIGN CHARACTERISTICS (a) The DM shall dehumigify to a 287K (57F) dew point while operating at 103 to 1724 kN/m (15 to 250 Psia). 68
