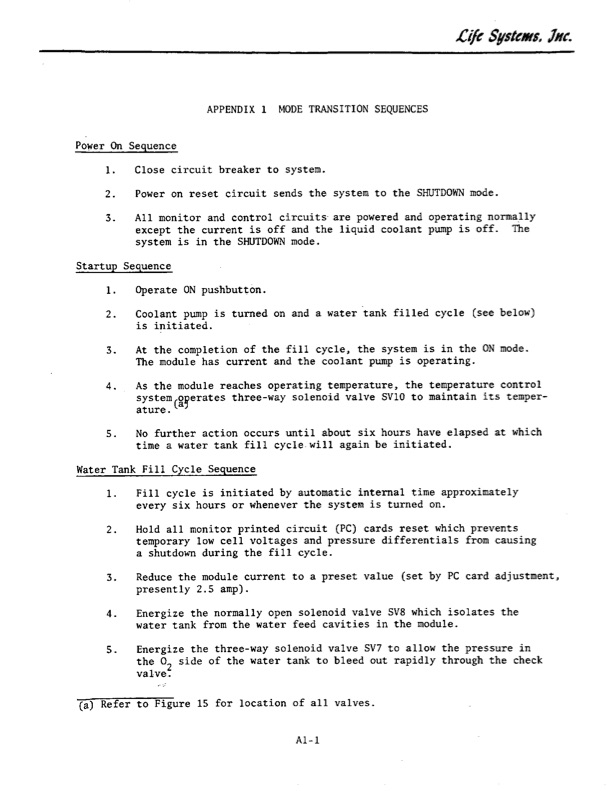

APPENDIX 1 MODE TRANSITION SEQUENCES Power On Sequence 1. Closecircuitbreakertosystem. 2. Power on reset circuit sends the system to the SHUTDOWN mode. 3. Allmonitorandcontrolcircuitsarepoweredandoperatingnormally except the current is off and the liquid coolant pump is off. The system is in the SHUTDOWN mode. Startup Sequence 1. OperateONpushbutton. 2. Coolant pump is turned on and a water tank filled cycle (see below) is initiated. 3. Atthecompletionofthefillcycle,thesystemisintheONmode. The module has current and the coolant pump is operating. 4. As the module reaches operating temperature, the temperature control system(oerates three-way solenoid valve SV10 to maintain its temper- ature. 5. No further action occurs until about six hours have elapsed at which time a water tank fill cycle will again be initiated. Water Tank Fill Cycle Sequence 1. 2. 3. 4. 5. Fillcycleisinitiatedbyautomaticinternaltimeapproximately every six hours or whenever the system is turned on. Holdallmonitorprintedcircuit(PC)cardsresetwhichprevents temporary low cell voltages and pressure differentials from causing a shutdown during the fill cycle. Reducethemodulecurrenttoapresetvalue(setbyPCcardadjustment, presently 2.5 amp). Energize the normally open solenoid valve SV8 which isolates the water tank from the water feed cavities in the module. Energize the three-way solenoid valve SV7 to allow the pressure in the 0 side of the water tank to bleed out rapidly through the check valve. (a)Refer to Figure 15 for location of all valves. Al-l ie Sstms, Jnc.PDF Image | WATER ELECTROLYSIS MODULE
PDF Search Title:
WATER ELECTROLYSIS MODULEOriginal File Name Searched:
