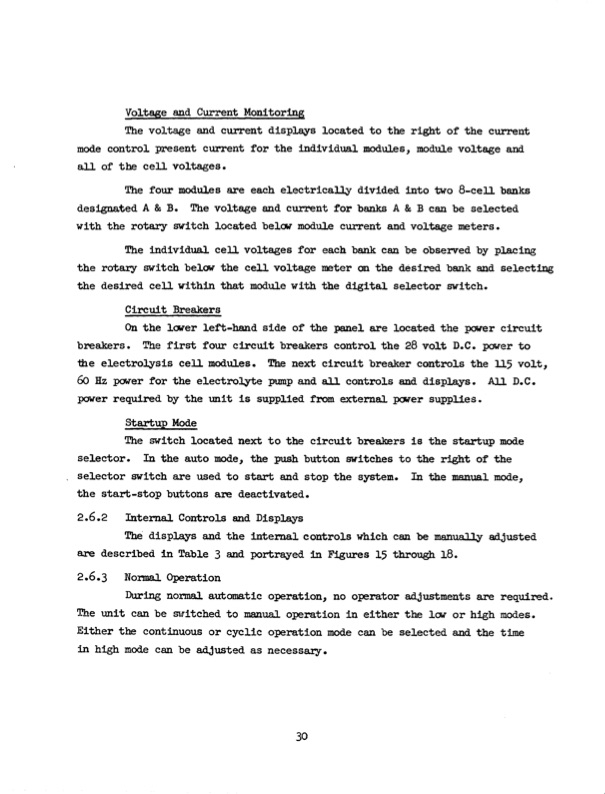

Voltage and Current Monitoring The voltage and current displays located to the right of the current mode control present current for the individual modules, module voltage and all of the cell voltages. The four modules are each electrically divided into two 8-cell banks designatedA&B. ThevoltageandcurrentforbanksA&Bcanbeselected with the rotary switch located below module current and voltage meters. The individual cell voltages for each bank can be observed by placing the rotary switch below the cell voltage meter on the desired bank and selecting the desired cell within that module with the digital selector switch. Circuit Breakers On the lower left-hand side of the panel are located the power circuit breakers. Thefirstfourcircuitbreakerscontrolthe28voltD.C.powerto theelectrolysiscellmodules. Thenextcircuitbreakercontrolsthe115volt, 60 Hz power for the electrolytepump and all controls and displays. All D.C. power required by the unit is supplied from external power supplies. Startup Mode The switch located next to the circuit breakers is the startup mode selector. Intheautomode,thepushbuttonswitchestotherightofthe selectorswitchareusedtostartandstopthesystem. Inthemanualmode, the start-stopbuttons are deactivated. 2.6.2 InternalControlsandDisplays The displays and the internal controls which can be manually adjusted are described in Table 3 and portrayed in Figures 15 through 18. 2.6.3 NormalOperation During normal automatic operation, no operator adjustments are required. The unit can be switched to manual operation in either the low or high modes. Either the continuous or cyclic operation mode can be selected and the time in high mode can be adjusted as necessary. 30PDF Image | WATER ELECTROLYSIS SYSTEM REFURBISHMENT
