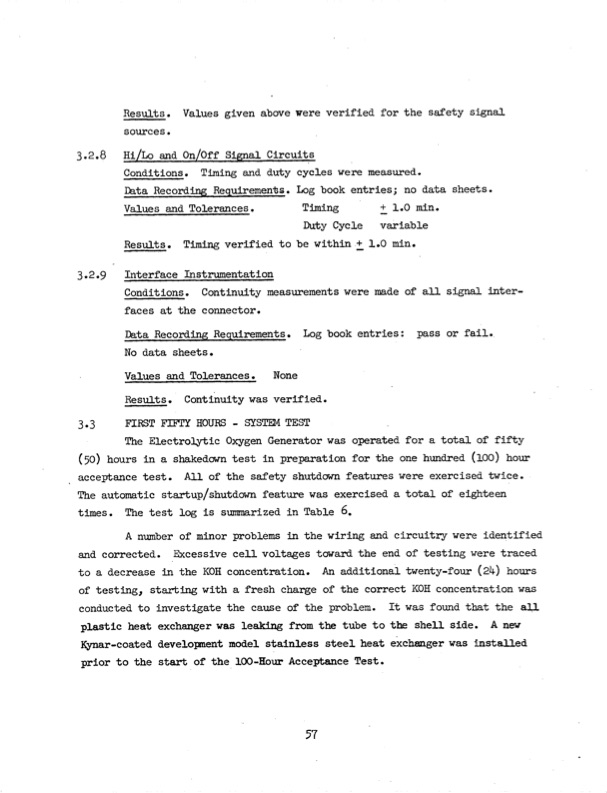

Results. Values given above were verified for the safety signal sources. 3.2.8 Hi/LoandOn/OffSignalCircuits Conditions. Timing and duty cycles were measured. Data Recording Requirements. Log book entries; no data sheets. Values and Tolerances. Timing + 1.0 min. DutyCycle variable Results. Timing verified to be within + 1.0 min. 3.2.9 Interface Instrumentation Conditions. Continuity measurements were made of all signal inter- faces at the connector. Data Recording Requirements. Log book entries: pass or fail. No data sheets. ValuesandTolerances. None Results. Continuitywasverified. 3.3 FIRST FIFTY HOURS - SYSTEM TEST The Electrolytic Oxygen Generator was operated for a total of fifty (50) hours in a shakedown test in preparation for the one hundred (100) hour acceptancetest. Allofthesafetyshutdownfeatureswereexercisedtwice. The automatic startup/shutdown feature was exercised a total of eighteen times. The test log is summarized in Table 6. A number of minor problems in the wiring and circuitry were identified and corrected. Excessive cell voltages toward the end of testing were traced to a decrease in the KOH concentration. An additional twenty-four (24) hours of testing, starting with a fresh charge of the correct KOH concentration was conductedtoinvestigatethecauseoftheproblem. Itwasfoundthattheall plasticheatexchangerwasleakingfromthetubetotheshellside. Anew Kynar-coateddevelopmentmodel stainlesssteelheat exchangerwas installed prior to the start of the 100-Hour Acceptance Test. 57PDF Image | WATER ELECTROLYSIS SYSTEM REFURBISHMENT
