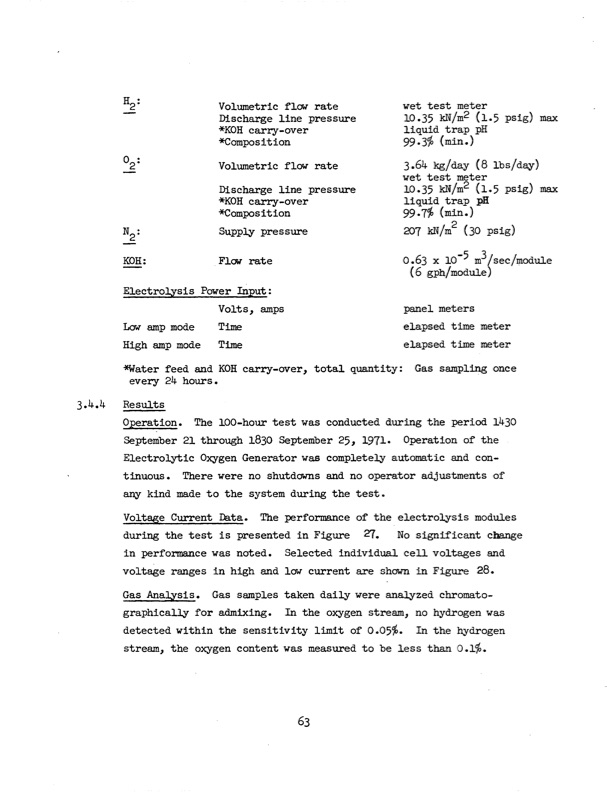

H2 : Volumetric flow rate Discharge line pressure *KOH carry-over *Composition wet test meter 10.35 kN/m2 (1.5 psig) max liquid trap pH 99.3% (min-) 3.64 kg/day (8 lbs/day) wet test meter 10.35 kN/m2 (1.5 psig) max liquid trap pH 99.7% (min.) 207 kN/m (30 psig) 0.63 x 10 5 m3 /sec/module (6 gph/module) panel meters elapsed time meter elapsed time meter O2: Volumetric flow rate Discharge line pressure *KOH carry-over *Composition Supply pressure KOH-: Flow rate Electrolysis Power Input: Volts, amps Low amp mode Time High amp mode Time N2: *Water feed and KOH carry-over, total quantity: Gas sampling once every 24 hours. 3.4.4 Results Operation. The 100-hour test was conducted during the period 1430 September21through1830September25,1971. Operationofthe Electrolytic Oxygen Generator was completely automatic and con- tinuous. Therewerenoshutdownsandnooperatoradjustmentsof any kind made to the system during the test. VoltageCurrentData. Theperformanceoftheelectrolysismodules during the test is presented in Figure 27. No significant change inperformancewasnoted. Selectedindividualcellvoltagesand voltage ranges in high and low current are shown in Figure 28. Gas Analysis. Gas samples taken daily were analyzed chromato- graphicallyforadmixing. Intheoxygenstream,nohydrogenwas detectedwithinthesensitivitylimitof0.05%. Inthehydrogen stream, the oxygen content was measured to be less than 0.1%. 63PDF Image | WATER ELECTROLYSIS SYSTEM REFURBISHMENT
