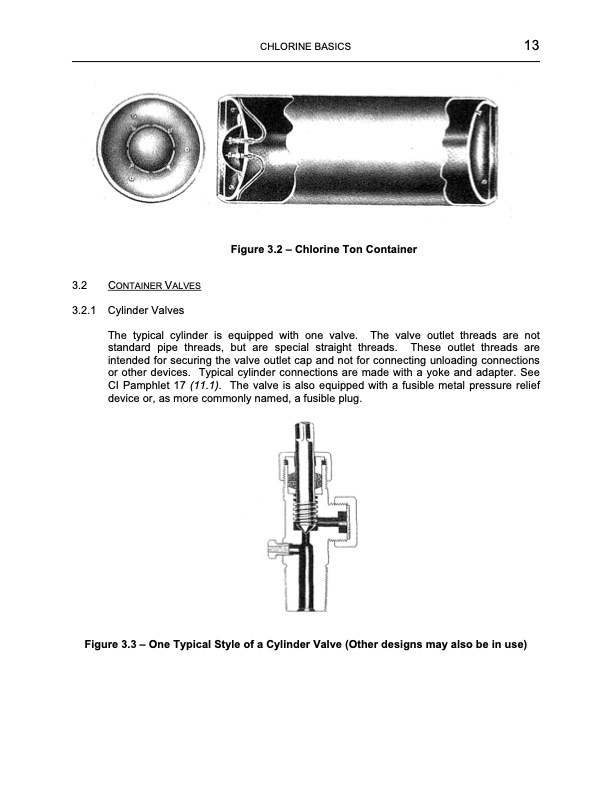

3.2 CONTAINER VALVES 3.2.1 Cylinder Valves CHLORINE BASICS 13 Figure 3.2 – Chlorine Ton Container The typical cylinder is equipped with one valve. The valve outlet threads are not standard pipe threads, but are special straight threads. These outlet threads are intended for securing the valve outlet cap and not for connecting unloading connections or other devices. Typical cylinder connections are made with a yoke and adapter. See CI Pamphlet 17 (11.1). The valve is also equipped with a fusible metal pressure relief device or, as more commonly named, a fusible plug. Figure 3.3 – One Typical Style of a Cylinder Valve (Other designs may also be in use)PDF Image | Chlorine Basics 8
