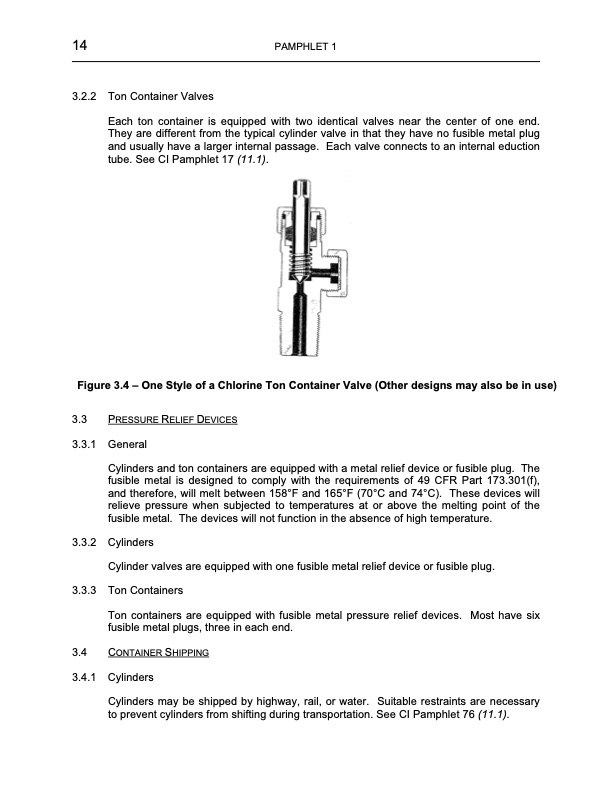

14 3.2.2 PAMPHLET 1 Ton Container Valves Each ton container is equipped with two identical valves near the center of one end. They are different from the typical cylinder valve in that they have no fusible metal plug and usually have a larger internal passage. Each valve connects to an internal eduction tube. See CI Pamphlet 17 (11.1). Figure 3.4 – One Style of a Chlorine Ton Container Valve (Other designs may also be in use) 3.3 PRESSURE RELIEF DEVICES 3.3.1 General Cylinders and ton containers are equipped with a metal relief device or fusible plug. The fusible metal is designed to comply with the requirements of 49 CFR Part 173.301(f), and therefore, will melt between 158°F and 165°F (70°C and 74°C). These devices will relieve pressure when subjected to temperatures at or above the melting point of the fusible metal. The devices will not function in the absence of high temperature. 3.3.2 Cylinders Cylinder valves are equipped with one fusible metal relief device or fusible plug. 3.3.3 Ton Containers Ton containers are equipped with fusible metal pressure relief devices. Most have six fusible metal plugs, three in each end. 3.4 CONTAINER SHIPPING 3.4.1 Cylinders Cylinders may be shipped by highway, rail, or water. Suitable restraints are necessary to prevent cylinders from shifting during transportation. See CI Pamphlet 76 (11.1).PDF Image | Chlorine Basics 8
