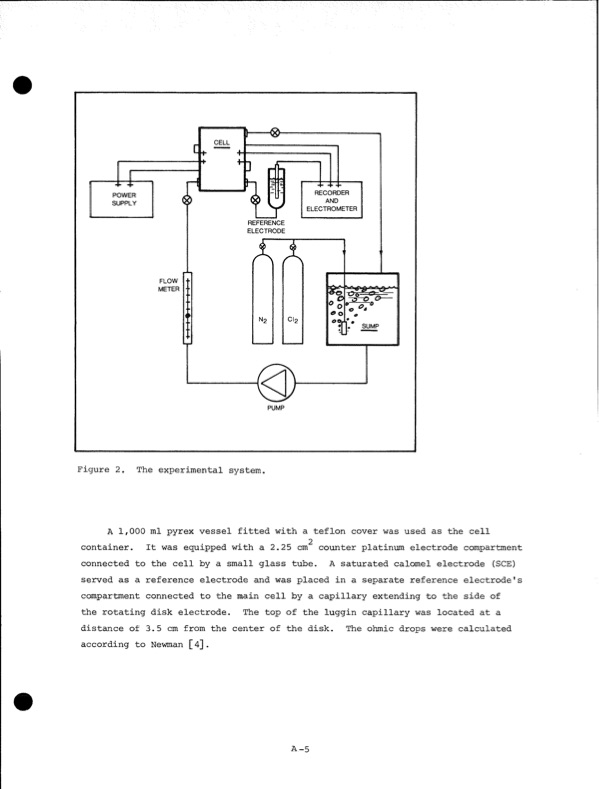

POWER SUPPLY RECORDER AND ELECTROMETER FLOW METER Figure 2. The experimental system. CELL U— REFERENCE ELECTRODE PUMP A 1,000 ml pyrex vessel fitted with a teflon cover was used as the cell 2 container. It was equipped with a 2.25 cm counter platinum electrode compartment connected to the cell by a small glass tube. A saturated calomel electrode (SCE) served as a reference electrode and was placed in a separate reference electrode's compartment connected to the main cell by a capillary extending to the side of the rotating disk electrode. The top of the luggin capillary was located at a distance of 3.5 cm from the center of the disk. The ohmic drops were calculated according to Newman [4]. A-5PDF Image | Development of the Zinc-Chlorine Battery for Utility
