Text from PDF Page: 233

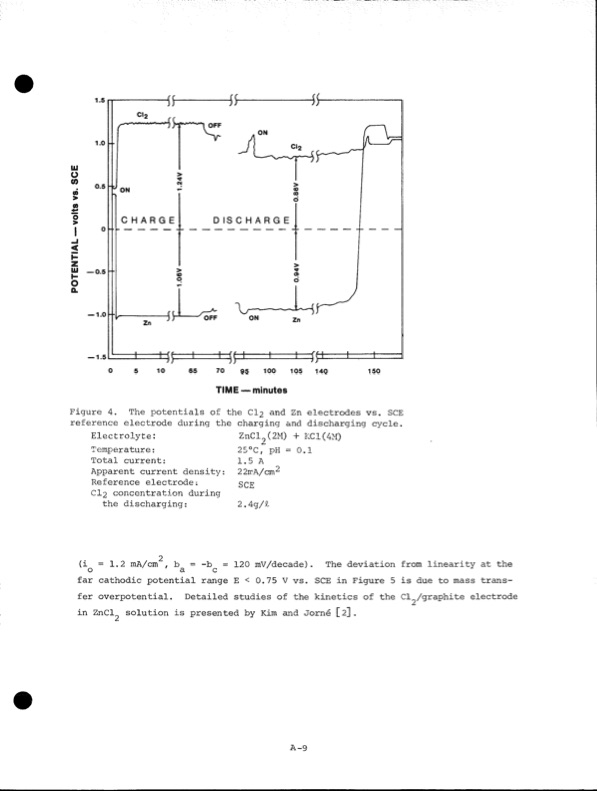

— 0.5 — 1.0 — 1.5 CHARGE DISCHARGE Electrolyte: Temperature: Total current: Apparent current density: Reference electrode; CI2 concentration during the discharging: ZnCl?(2M) + KC1(4M) 250C,~ pH = 0.1 1.5 A 22irA/cm^ SCE 2.4g/£ TIME — minutes Figure 4. The potentials of the Cl? and Zn electrodes vs. SCE reference electrode during the charging and discharging cycle. 2 (iQ =1.2 mA/cm , = -b^ = 120 mV/decade). The deviation from linearity at the far cathodic potential range E < 0.75 V vs. SCE in Figure 5 is due to mass trans fer overpotential. Detailed studies of the kinetics of the Cl^/graphite electrode in ZnCl^ solution is presented by Kim and Jorne [2]. A-9 POTENTIAL — volts vs. SCE
