Text from PDF Page: 255

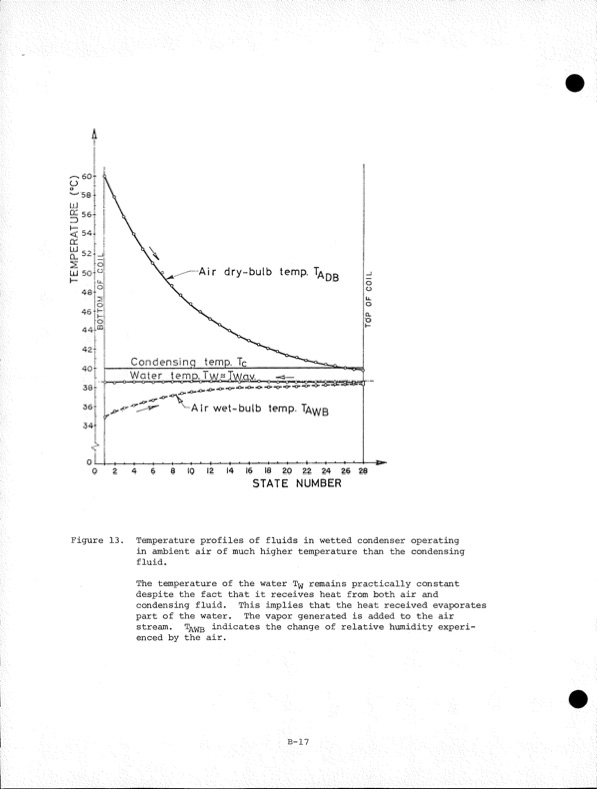

Figure 13. dry-bulb temp. Ty Condensing temp. Tc Water_ temp._I)N~Jw^n Air wet-bulb temp. XAyyB 18 20 22 24 26 28 STATE NUMBER Temperature profiles of fluids in wetted condenser operating in ambient air of much higher temperature than the condensing fluid. The temperature of the water Tw remains practically constant despite the fact that it receives heat from both air and condensing fluid. This implies that the heat received evaporates part of the water. The vapor generated is added to the air stream. Iawb indicates the change of relative humidity experi enced by the air. B-17 TEMPERATURE (°C)PDF Image | Development of the Zinc-Chlorine Battery for Utility
