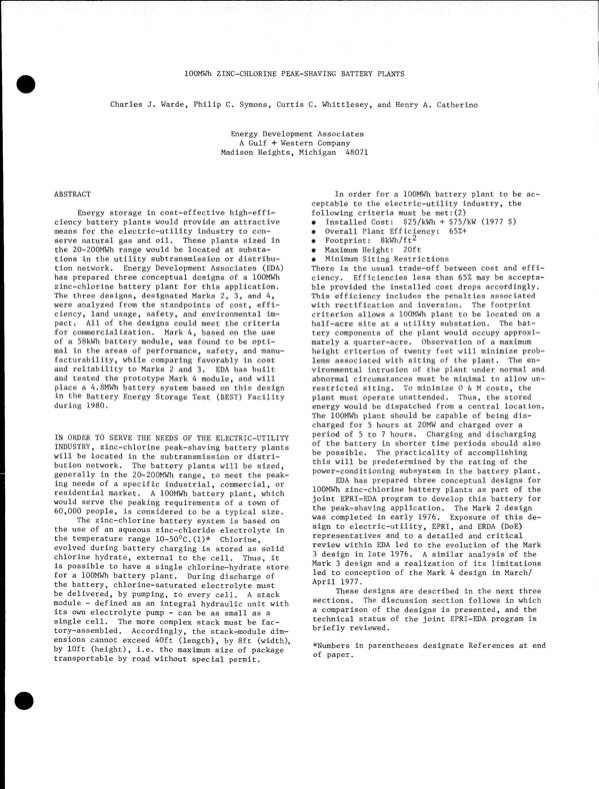

lOOMWh ZINC-CHLORINE PEAK-SHAVING BATTERY PLANTS Charles J. Warde, Philip C. Symons, Curtis C. Whittlesey, and Henry A. Catherino Energy Development Associates A Gulf + Western Company Madison Heights, Michigan 48071 ABSTRACT Energy storage in cost-effective high-effi- ciency battery plants would provide an attractive means for the electric-utility industry to con­ servenaturalgasandoil. Theseplantssizedin the 20-200MWh range would be located at substa­ tions in the utility subtransmission or distribu­ tion network. Energy Development Associates (EDA) has prepared three conceptual designs of a lOOMWh zinc-chlorine battery plant for this application. The three designs, designated Marks 2, 3, and 4, were analyzed from the standpoints of cost, effi­ ciency, land usage, safety, and environmental im­ pact. All of the designs could meet the criteria for commercialization. Mark 4, based on the use of a 58kWh battery module, was found to be opti­ mal in the areas of performance, safety, and manu­ facturability, while comparing favorably in cost and reliability to Marks 2 and 3. EDA has built and tested the prototype Mark 4 module, and will place a 4.8MWh battery system based on this design in the Battery Energy Storage Test (BEST) Facility during 1980. IN ORDER TO SERVE THE NEEDS OF THE ELECTRIC-UTILITY INDUSTRY, zinc-chlorine peak-shaving battery plants will be located in the subtransmission or distri­ butionnetwork. Thebatteryplantswillbesized, generally in the 20-200MWh range, to meet the peak­ ing needs of a specific industrial, commercial, or residentialmarket. AlOOMWhbatteryplant,which would serve the peaking requirements of a town of 60,000 people, is considered to be a typical size. The zinc-chlorine battery system is based on the use of an aqueous zinc-chloride electrolyte in the temperature range 10-50°C.(1)* Chlorine, evolved during battery charging is stored as solid chlorine hydrate, external to the cell. Thus, it is possible to have a single chlorine-hydrate store for a lOOMWh battery plant. During discharge of the battery, chlorine-saturated electrolyte must be delivered, by pumping, to every cell. A stack module - defined as an integral hydraulic unit with its own electrolyte pump - can be as small as a singlecell. Themorecomplexstackmustbefac­ tory-assembled. Accordingly, the stack-module dim­ ensions cannot exceed 40ft (length), by 8ft (width), by 10ft (height), i.e. the maximum size of package transportable by road without special permit. In order for a lOOMWh battery plant to be ac­ ceptable to the electric-utility industry, the following criteria must be met:(2) • Installed Cost: $25/kWh + $75/kW (1977 $) 0 Overall Plant Efficiency: 65%+ • Footprint: SkWh/ft^ • MaximumHeight: 20ft • Minimum Siting Restrictions There is the usual trade-off between cost and effi­ ciency. Efficiencieslessthan65%maybeaccepta­ ble provided the installed cost drops accordingly. This efficiency includes the penalties associated with rectification and inversion. The footprint criterion allows a lOOMWh plant to be located on a half-acre site at a utility substation. The bat­ tery components of the plant would occupy approxi­ mately a quarter-acre. Observation of a maximum height criterion of twenty feet will minimize prob­ lems associated with siting of the plant. The en­ vironmental intrusion of the plant under normal and abnormal circumstances must be minimal to allow un­ restricted siting. To minimize 0 & M costs, the plant must operate unattended. Thus, the stored energy would be dispatched from a central location. The lOOMWh plant should be capable of being dis­ charged for 5 hours at 20MW and charged over a period of 5 to 7 hours. Charging and discharging of the battery in shorter time periods should also be possible. The practicality of accomplishing this will be predetermined by the rating of the power-conditioning subsystem in the battery plant. EDA has prepared three conceptual designs for lOOMWh zinc-chlorine battery plants as part of the joint EPRI-EDA program to develop this battery for the peak-shaving application. The Mark 2 design was completed in early 1976. Exposure of this de­ sign to electric-utility, EPRI, and ERDA (DoE) representatives and to a detailed and critical review within EDA led to the evolution of the Mark 3 design in late 1976. A similar analysis of the Mark 3 design and a realization of its limitations led to conception of the Mark 4 design in March/ April 1977. These designs are described in the next three sections. The discussion section follows in which a comparison of the designs is presented, and the technical status of the joint EPRI-EDA program is briefly reviewed. *Numbers in parentheses designate References at end of paper.
