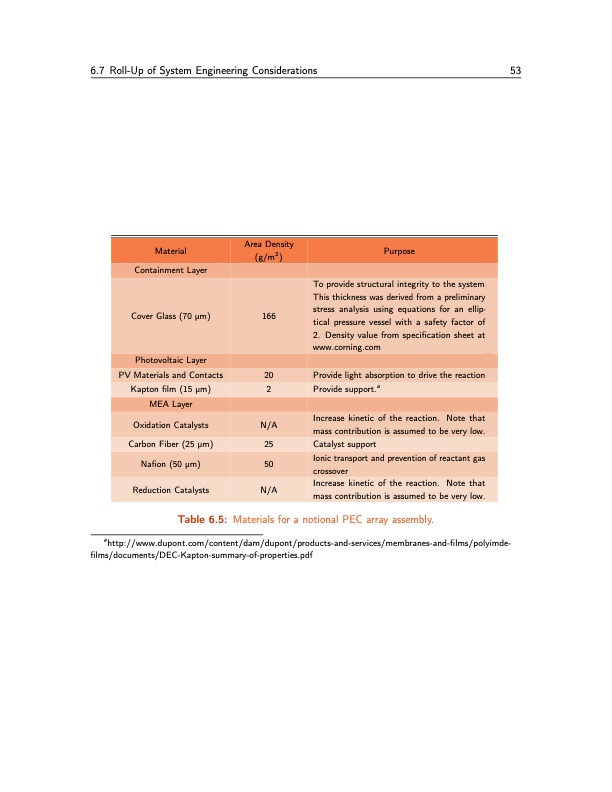

6.7 Roll-Up of System Engineering Considerations 53 Material Area Density Purpose (g/m2 ) Containment Layer Cover Glass (70 μm) 166 To provide structural integrity to the system. This thickness was derived from a preliminary stress analysis using equations for an ellip- tical pressure vessel with a safety factor of 2. Density value from specification sheet at www.corning.com Photovoltaic Layer PV Materials and Contacts 20 Provide light absorption to drive the reaction Kapton film (15 μm) 2 Provide support.a MEA Layer Oxidation Catalysts N/A Increase kinetic of the reaction. Note that mass contribution is assumed to be very low. Carbon Fiber (25 μm) 25 Catalyst support Nafion (50 μm) 50 Ionic transport and prevention of reactant gas crossover Reduction Catalysts N/A Increase kinetic of the reaction. Note that mass contribution is assumed to be very low. Table 6.5: Materials for a notional PEC array assembly. ahttp://www.dupont.com/content/dam/dupont/products-and-services/membranes-and-films/polyimde- films/documents/DEC-Kapton-summary-of-properties.pdfPDF Image | ISRU Challenge Production of O2 and Fuel from CO2
