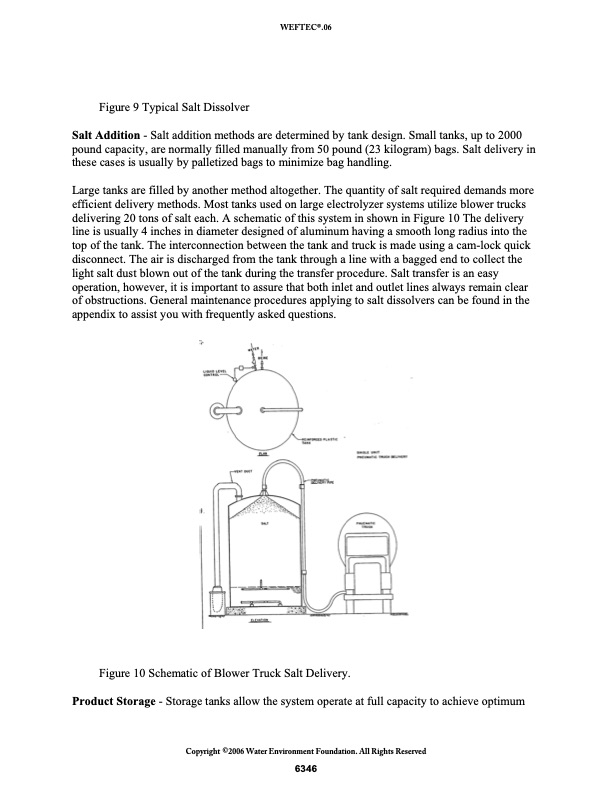

WEFTEC®.06 Figure 9 Typical Salt Dissolver Salt Addition - Salt addition methods are determined by tank design. Small tanks, up to 2000 pound capacity, are normally filled manually from 50 pound (23 kilogram) bags. Salt delivery in these cases is usually by palletized bags to minimize bag handling. Large tanks are filled by another method altogether. The quantity of salt required demands more efficient delivery methods. Most tanks used on large electrolyzer systems utilize blower trucks delivering 20 tons of salt each. A schematic of this system in shown in Figure 10 The delivery line is usually 4 inches in diameter designed of aluminum having a smooth long radius into the top of the tank. The interconnection between the tank and truck is made using a cam-lock quick disconnect. The air is discharged from the tank through a line with a bagged end to collect the light salt dust blown out of the tank during the transfer procedure. Salt transfer is an easy operation, however, it is important to assure that both inlet and outlet lines always remain clear of obstructions. General maintenance procedures applying to salt dissolvers can be found in the appendix to assist you with frequently asked questions. Figure 10 Schematic of Blower Truck Salt Delivery. Product Storage - Storage tanks allow the system operate at full capacity to achieve optimum Copyright ©2006 Water Environment Foundation. All Rights Reserved 6346PDF Image | On-Site Sodium Hypochlorite Generation
