Text from PDF Page: 006

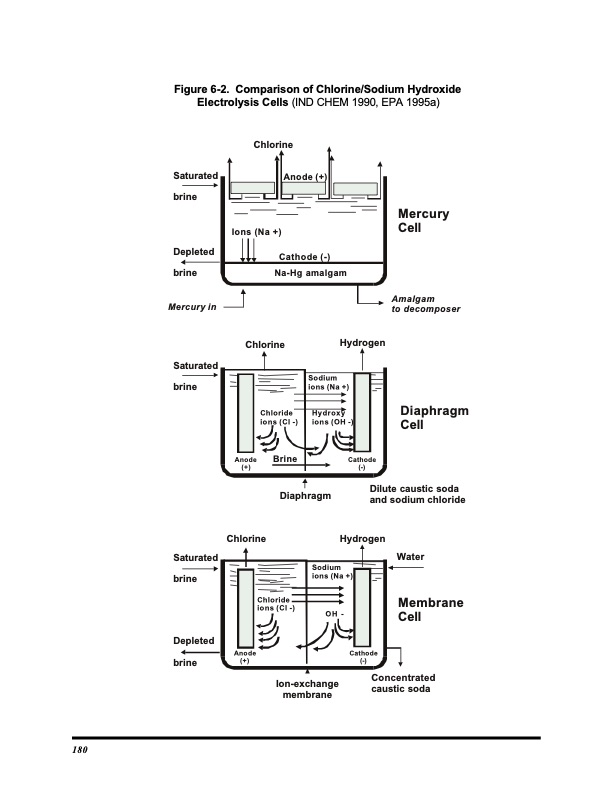

Figure 6-2. Comparison of Chlorine/Sodium Hydroxide Electrolysis Cells (IND CHEM 1990, EPA 1995a) Chlorine Anode (+) Ions (Na +) Cathode (-) Na-Hg amalgam Saturated brine Depleted brine Mercury in Chlorine Saturated Mercury Cell Amalgam to decomposer brine Hydrogen Sodium ions (Na +) Hydroxy ions (OH -) Saturated brine Depleted brine Chloride ions (Cl -) Hydrogen Sodium ions (Na +) OH - Water Membrane Cell Chloride ions (Cl -) Diaphragm Cell Anode (+) Chlorine Brine Diaphragm Cathode (-) Dilute caustic soda and sodium chloride Anode (+) Cathode (-) Ion-exchange membrane Concentrated caustic soda 180
