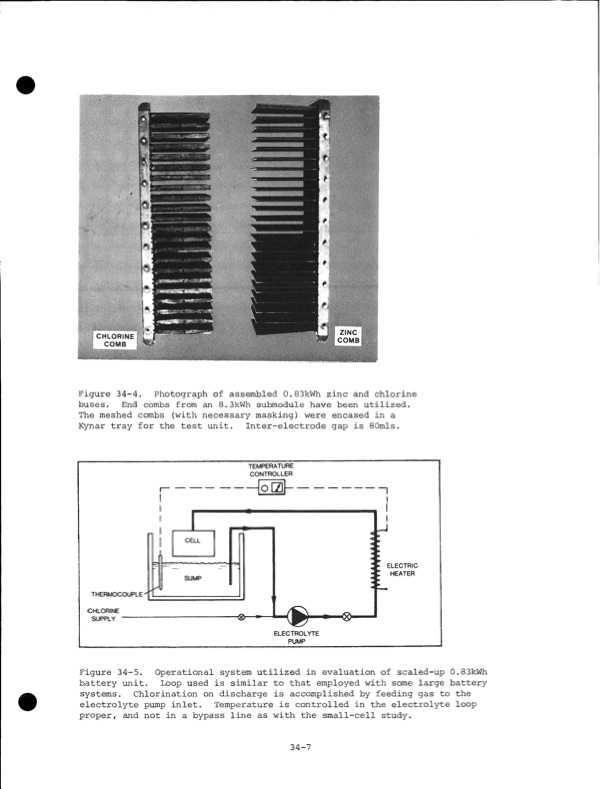

Figure 34-4. Photograph of assembled 0.83kWh zinc and chlorine buses. End combs from an 8.3kWh submodule have been utilized. The meshed combs (with necessary masking) were encased in a Kynar tray for the test unit. Inter-electrode gap is 80mls. TEMPERATURE CONTROLLER i----l-ocal-----1 -- CELL SUMP ELECTRIC HEATER THERMOCOUPLE CHLORINE SUPPLY Figure 34-5. battery unit. systems. Chlorination on discharge is accomplished by feeding gas to the electrolyte pump inlet. Temperature is controlled in the electrolyte loop proper, and not in a bypass line as with the small-cell study. ELECTROLYTE PUMP Operational system utilized in evaluation of scaled-up 0.83kWh Loop used is similar to that employed with some large battery 34-7PDF Image | Development of the Zinc-Chlorine Battery for Utility
