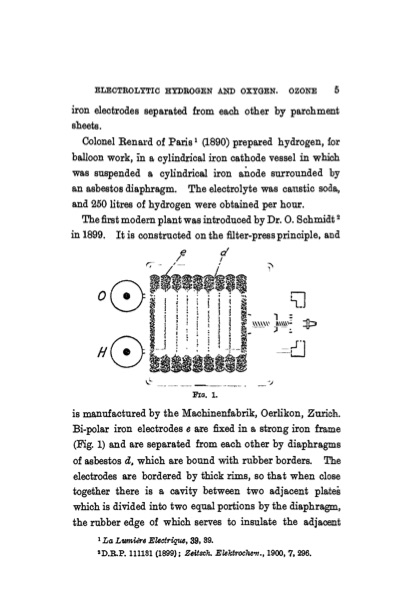

ELECTROLYTIC HYDBOGEN AND OXYGEN. OZONE 5 iron electrodes separated from each other by parchment sheets. x Colonel Eenard of Paris (1890) prepared hydrogen, for balloon work, in a cylindrical iron cathode vessel in which was suspended a cylindrical iron anode surrounded by an asbestos diaphragm. The electrolyte was caustic soda, and 250 litres of hydrogen were obtained per hour. 2 The first modern plant was introduced by Dr. 0. Schmidt in 1899. It is constructed on the filter-press principle, and FIG. I. is manufactured by the Machinenfabrik, Oerlikon, Zurich. Bi-polar iron electrodes e are fixed in a strong iron frame (Fig. 1) and are separated from each other by diaphragms of asbestos d3 which are bound with rubber borders. The electrodes are bordered by thick rims, so that when close together there is a cavity between two adjacent plates which is divided into two equal portions by the diaphragm, the rubber edge of which serves to insulate the adjacent 1 2 La Lvmiire Electrique, 39,39. D.R.P. 111131 (1899); Zeitsch. Elektrochew., 1900, 7, 296.PDF Image | MANUFACTURE OF CHEMICALS BY ELECTROLYSIS
